智能型电动机保护器在孟加拉水泥厂的应用

 Intelligent Motor Protection Relay Apply in Bangladesh Cement Factory

安科瑞 周莉娜

摘要:电动机设备是水泥企业中应用较广泛的动力装置,而水泥生产企业属于能耗高、污染大又需要设备连续不间断工作的行业,电动机作为水泥行业设备的动力来源,其安全、稳定可靠的运转对水泥行业的平稳生产起着至关重要的作用。

Abstract: Motor equipment is widely used in cement enterprises in power plant, and cement production enterprise belong to high energy consumption, pollution, large and continuous uninterrupted work need equipment industry, the electric motor as the power source of the cement industry equipment, the safe, stable and reliable operation, steady production of cement industry plays a vital role.

1.项目概述 Project Description

   随着现代化水泥工业生产规模增加,生产设备也越来越大型化,因此所需用的拖动电动机的功率也越来越大。水泥厂生产工艺流程较复杂,可以总结水泥生产过程为生料制备(一磨)、熟料煅烧(一烧)、水泥粉磨(二磨)。因此,低压电动机作为水泥生产过程中较常用的机组,数量多、种类复杂,随着科学技术的不断进步和工艺控制过程的不断完善,尤其是自动化生产要求,迫切需要开发和完善电动机的控制和保护设备,实现对整个自动化生产过程和大型机械的遥控、遥测、遥调、故障诊断以及集中控制等功能

孟加拉水泥厂客户找到我们, 购买了ARD2F系列的 智能型电动机保护器。

With the increase of modern cement industry production scale, production equipment is also more and more large, so the power of the drag motor is also more and more large.The production process of cement plant is complicated. The cement production process can be summarized as raw material preparation (first grinding), clinker calcination (first burning) and cement grinding (second grinding).Therefore, the low-voltage motor, as the most commonly used unit in cement production process, has a large number and a complex type. With the continuous progress of science and technology and the continuous improvement of process control process, especially the requirements of automatic production, there is an urgent need to develop and improve the control and protection equipment of the motor.Realize the whole automatic production process and large machinery remote control, remote measurement, remote adjustment, fault diagnosis and centralized control and other functions

The customer of Bangladesh Cement factory came to us and bought the ARD2F series intelligent motor protector

2.产品介绍 Product introduction

ARD2F 系列智能电动机保护器(以下简称保护器)能对电动机运行过程中 出现的多种故障情况进行保护,并设有 SOE 故障事件记录功能,方便现场维护 人员查找故障原因。本保护器具有 RS485 远程通讯接口, DC4~20mA 模拟量 输出,方便与 PLC、PC 等控制机组成网络系统。实现电动机运行的远程监控。

ARD2F series intelligent motor protector (hereinafter referred to as protector) can protect a variety of fault situations in the process of motor operation, and is equipped with SOE fault event recording function, which is convenient for field maintenance personnel to find fault causes.This protector has RS485 remote communication interface, DC4 ~ 20mA analog output, convenient with PLC, PC and other control units into a network system.Realize the remote monitoring of motor operation.

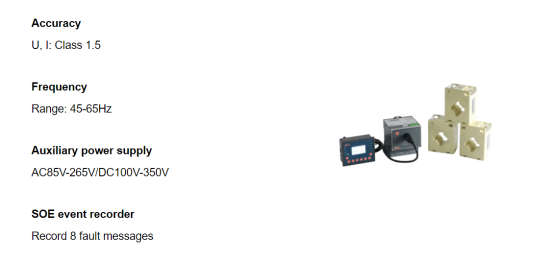

3.功能Function

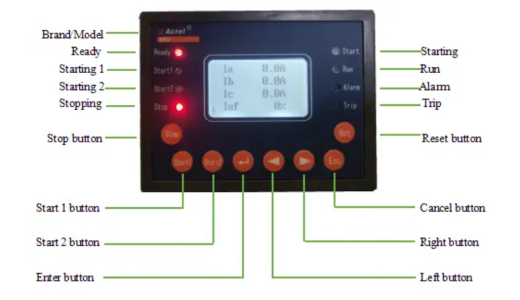

4.面板显示Front Panel

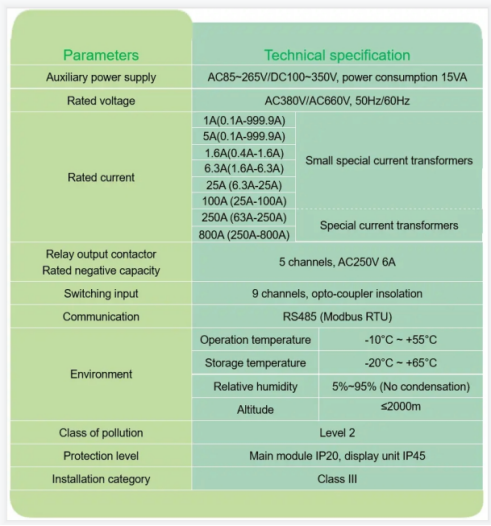

5.技术参数Technical Features

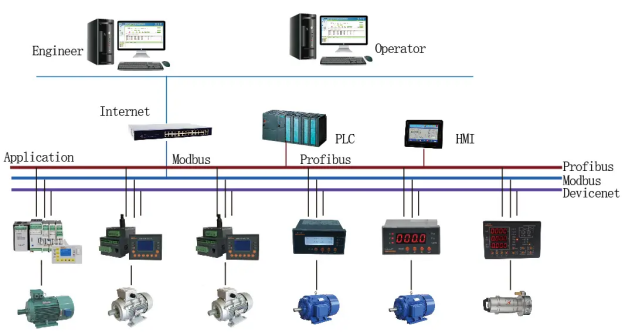

6.组网拓扑图 Network topology

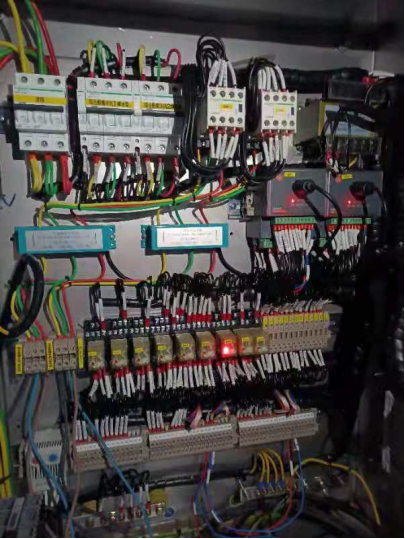

7.现场图片Photo on-site

8. 结束语Conclusion

随着电子技术及通讯技术的不断发展。电动机保护器也在朝着多元化方向发展,电动机保护器在水泥企业的应用也越来越广泛,合理选择电机设备的保护功能和保护方式,可提高设备运行的可靠性,能够预防并杜绝电机烧毁,同时减少了因非计划停车而造成的损失,降低了企业的生产成本。

With the development of electronic technology and communication technology.Motor protector is in development in the direction of diversification, motor protector application is becoming more and more widely in cement enterprise, the rational selection of protection and the protection of electrical equipment, can improve the reliability of equipment operation, can prevent and stop motor burned, while reducing the losses caused by unplanned parking, reduce the production cost of enterprises.
